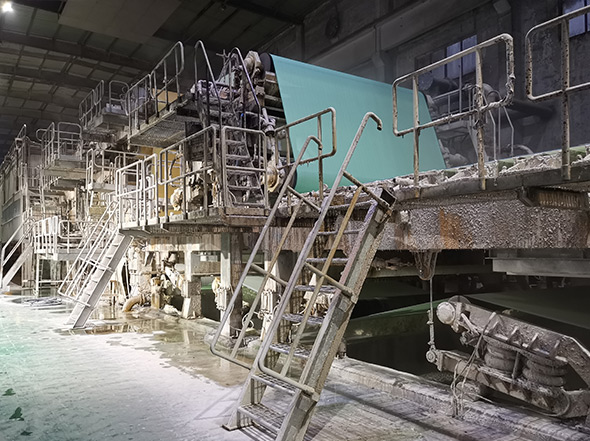

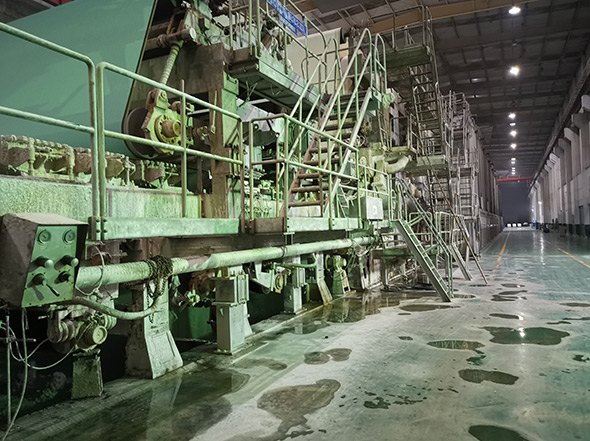

CT3150-150TPD Writing&Printing Paper Machine
CT3150-150TPD Writing&Printing Paper Machine
Product Description
Main Parameters For W&P Project
|
NO |
MAIN NAME |
MAIN DATA |
|
1 |
PAPER GRADE |
Writing & Printing paper |
|
2 |
TRIM WIDTH |
3150mm |
|
3 |
GRAM RANGE |
40-80gsm |
|
4 |
BASIS WEIGHT |
70gsm |
|
5 |
DESIGN SPEED |
550m/min |
|
6 |
WORKING SPEED |
500m/min |
|
7 |
DAY CAPACITY |
150T/D |
|
8 |
ARRANGE TYPE |
Two-floor |
Turnkey Services For Writing&Printing Paper Project
|
NO |
MAIN SYSTEM |
REMARKS |
|
1 |
GENERAL DESIGN |
INCLUDED |
|
2 |
STOCK PREPARATION |
INCLUDED |
|
3 |
APPROACH SYSTEM |
INCLUDED |
|
4 |
PAPER MACHINE |
INCLUDED |
|
5 |
BROKED PAPER SYSTEM |
INCLUDED |
|
6 |
FRESH&WHITE WATER SYSTEM |
INCLUDED |
|
7 |
VACUUM SYSTEM |
INCLUDED |
|
8 |
STEAM CONDENSATE SYSTEM |
INCLUDED |
|
9 |
DCS&QCS |
INCLUDED |
|
10 |
COMPRESSED AIR SYSTEM |
INCLUDED |
|
11 |
SIZE COOKING SYSTEM |
INCLUDED |
|
12 |
PIPINGS&VALVES |
INCLUDED |
|
13 |
WATER TREATMENT |
INCLUDED |
|
14 |
BOILERS |
INCLUDED |
|
15 |
MCS FOR PAPER MACHINE |
INCLUDED |
|
16 |
ALL CABLES LINES |
INCLUDED |
|
17 |
MCC SYSTEM |
INCLUDED |
|
18 |
CRANES FOR WORKSHOP |
INCLUDED |
|
19 |
CIVIL WORKS |
EXCLUDED |
Main Techincal Specification For W&P Project
|
NO |
MAIN PART |
SPECIFICATION |
|
1 |
HEADBOX |
Lip width:3500mm |
|
2 |
WIRE SECTION |
Fourdrinier wire length: 18m+Top former |
|
3 |
PRESS SECTION |
Four rollers with three Nips: φ950/φ950/φ1350/φ950 |
|
4 |
DRYING SECTION |
44*φ1800 dryers+3*VAC-Rolls |
|
5 |
FILM SIZER |
φ1000/φ1000 |
|
6 |
STEAM HOOD |
CLOSE HOOD |
|
7 |
SOFT CALENDER |
φ650/φ700+φ650/φ700 |
|
8 |
POPE REEL |
Including 10 pcs of reel spools |
|
9 |
REWINDER |
Working speed: 1500m/min |
|
10 |
DRIVE SECTION |
ABB880 frequency converter |
